밸브사업부

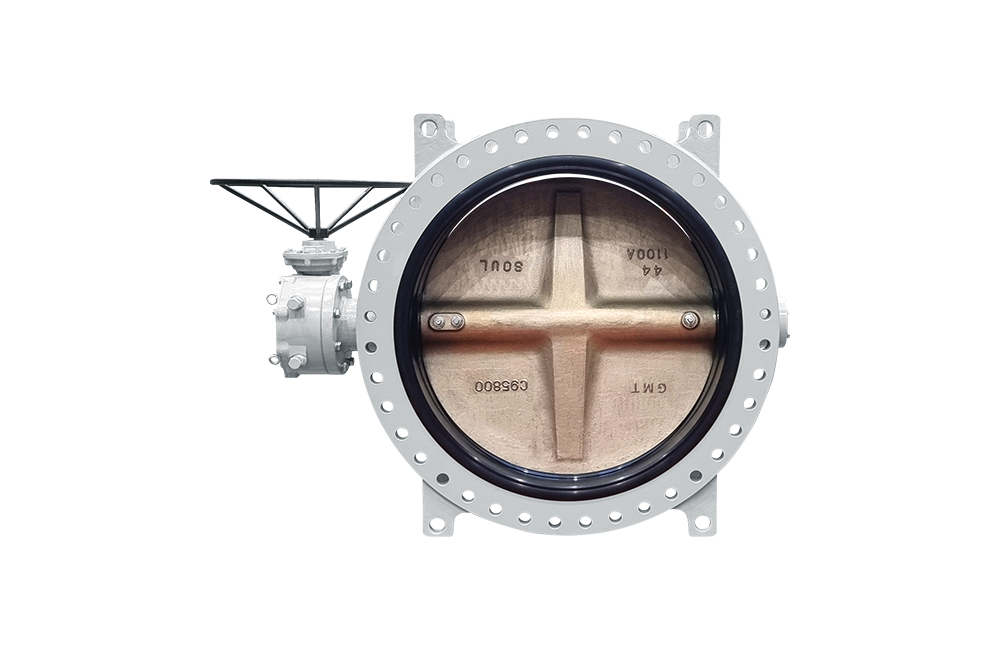

Concentric Rubber Seated Butterfly Valves
STANDARD COMPLIANCE
- Concentric butterfly valves conform to ISO 5752, KS V 7490, JIS F 7480, JIS B 2032, JIS B 2064, API 609, BS 5155, DIN 2501
PRODUCTION RANGE
- Valve Size : 40mm (1-1 / 2 in) ~ 1,800mm (72 in)
- Rating Temperature : -20°C ~ +80°C
- Working Pressure : up to 16 bar
APPLICABLE FLANGE
- KS / JIS 5K / 10K / 16K
- ASME B16.1 CLASS 125, ASME B16.5 CLASS 150
- ASME B16.47 Series A / B CLASS 150
- BS EN 1092-1 PN6 / PN10 / PN16
- AWWA C207 CLASS B / D / E

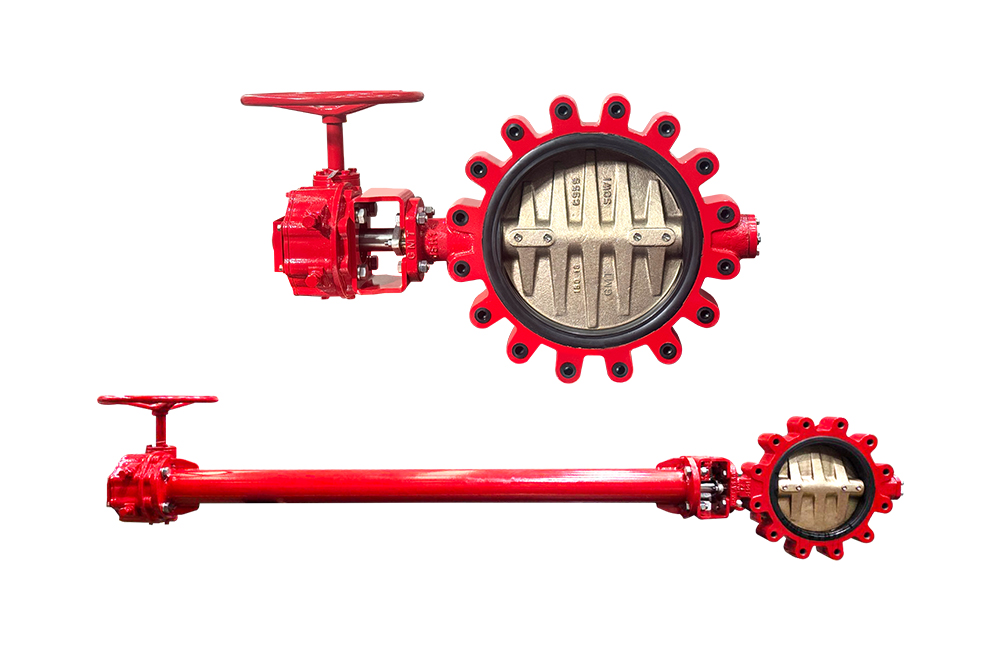

Concentric Vulcanized Rubber Seated Butterfly Valves (UL Cert.)
STANDARD COMPLIANCE
- Concentric vulcanized rubber seat butterfly valves
conform to UL 1091, ISO 5752, API 609.
PRODUCTION RANGE
- Valve Size : 80mm (3in) ~ 600mm (24in)
- Rating Temperature : -20°C ~ +80°C
- Working Pressure : up to 18 bar
APPLICABLE FLANGE
- ASME B16.5 CLASS 150

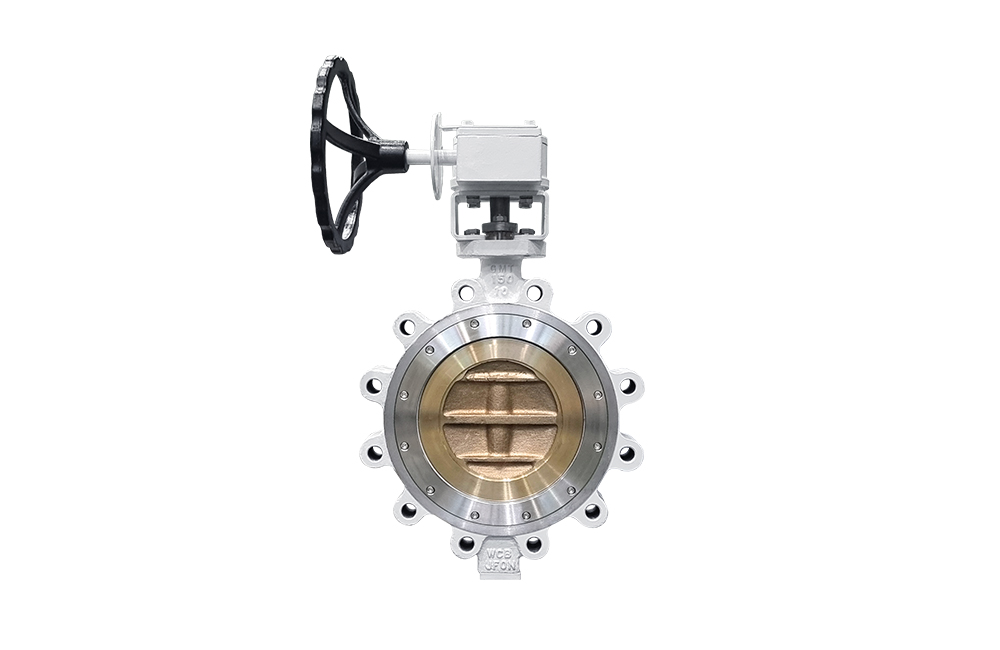

Double Offset High-Performance Teflon Seated Butterfly Valves
STANDARD COMPLIANCE
- The face-to-face dimension shall be in accordance with API 609, ISO 5752, KS V 7490, JIS F 7480.
- BS 5155 or MSS SP-68
PRODUCTION RANGE
- Valve Size : 50mm (2 in) ~ 2,000mm (80 in)
- Rating Temperature (soft seat) : -20°C ~ +250°C
- Rating Temperature (metal seat) : -100°C ~ +650°C
- Working Pressure : up to 50 bar
APPLICABLE FLANGE
- KS / JIS 5K / 10K / 16K
- ASME B16.1 CLASS 125, ASME B16.5 CLASS 150
- ASME B16.47 SR.A / B CLASS 150
- BS EN 1092-1 PN6 / PN10 / PN16
- AWWA C207 CLASS B / D / E

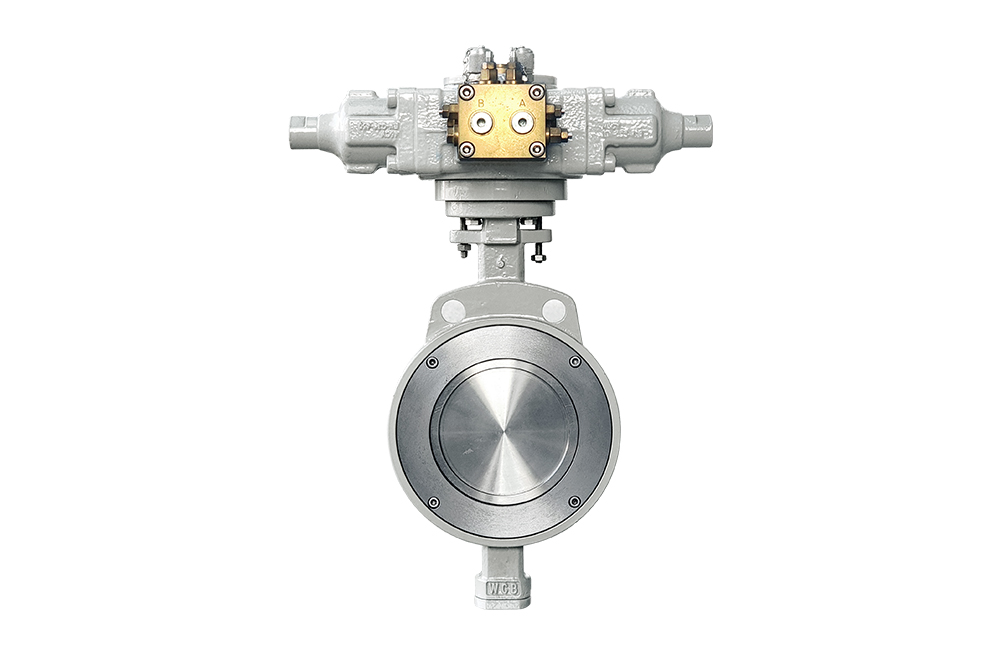

Double Offset Cargo Oil Rubber Seated Butterfly Valves
STANDARD COMPLIANCE
- The face-to-face dimension shall be in accordance with KS V 7490, JIS F 7480
PRODUCTION RANGE
- Valve Size : 50mm (2in) ~ 1,000mm (40in)
- Rating Temperature : -20°C ~ +250°C
- Working Pressure : up to 50 bar
APPLICABLE FLANGE
- KS / JIS 10K / 16K / 20K / 30K
- ASME B16.5 CLASS 150 / 300
- ASME B16.47 Series A / B CLASS 150 / 300

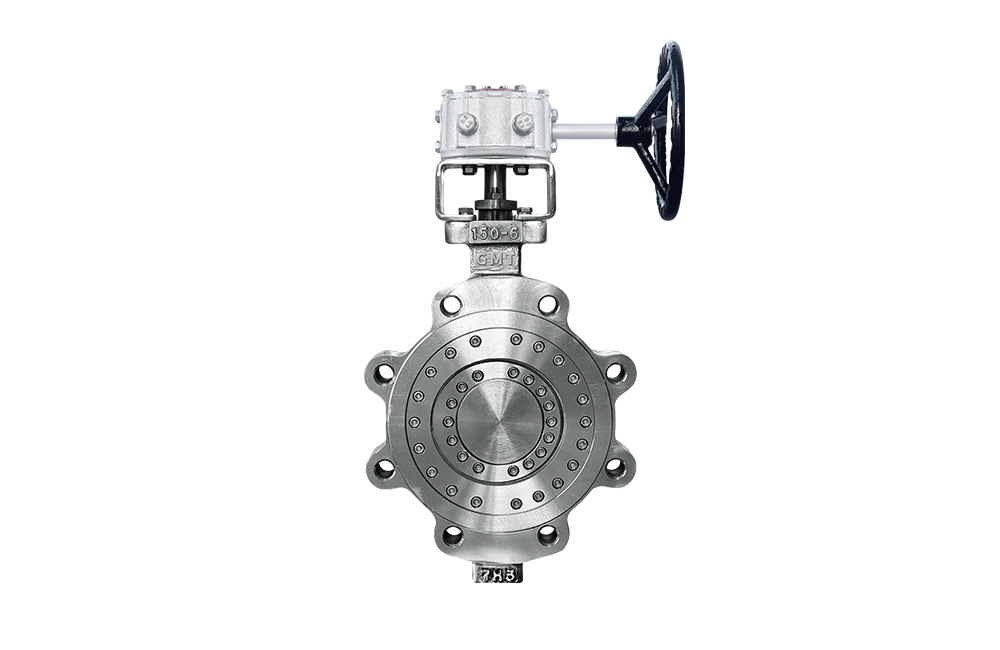

Triple Offset Metal Seated Butterfly Valves
STANDARD COMPLIANCE
- Face-to-face dimensions conform to API 609, ISO 5752, DIN 3203, MSS-SP-68, JIS F 7480, JIS B 2031, KS V 7490
- Fire safe design shall be in accordance with API 607, API 6FA and BS 6755
- Compatible with machine protection systems according to API 670
PRODUCTION RANGE
- Valve Size : 80mm (3in) ~ 3,100mm (124in)
- Rating Temperature : -196°C ~ 650°C
- Working Pressure : up to 255 bar
APPLICABLE FLANGE
- ASME B16.5, ASME B16.47 Series A / B, Class 150 / 300 / 600 / 900 / 1500
- KS / JIS 5K / 10K / 16K / 20K / 30K / 40K / 63K
- BS EN 1092-1 PN6 / PN10 / PN16 / PN25 / PN40 / PN63 / PN100
- AWWA C207 CLASS B / D / E

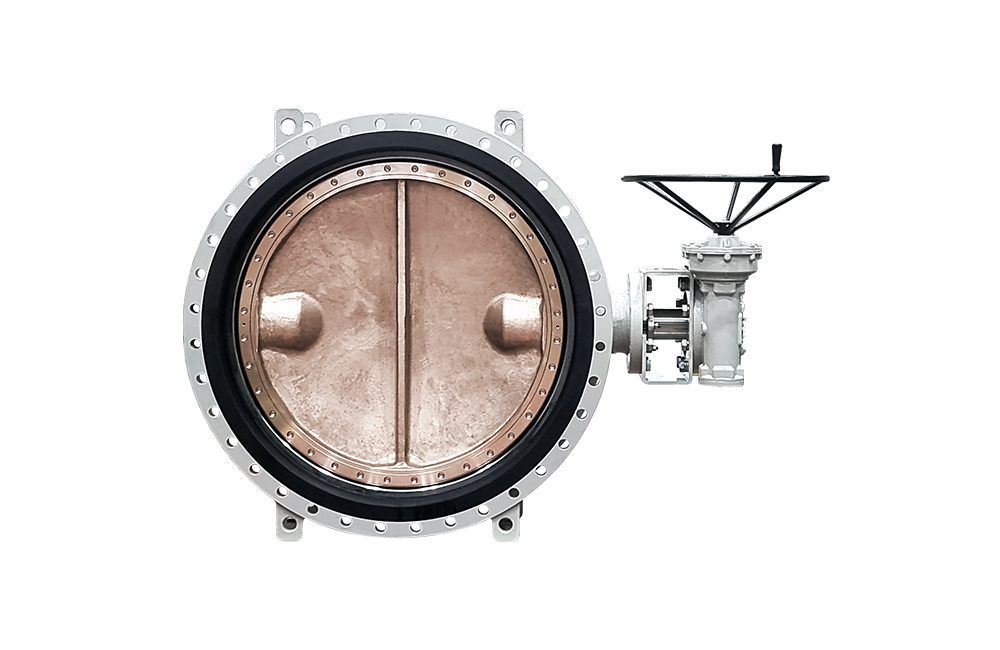

Double Offset Disc Rubber Seated Butterfly Valves
STANDARD COMPLIANCE
- Face-to-face dimensions conform to KS, JIS, BS, AWWA, and DIN standards. (specific standards available upon request)
- Hard or soft rubber lining for body and disc is available upon request.
PRODUCTION RANGE
- Valve Size : 200mm (8in) ~ 4,000mm (160in)
- Rating Temperature : -40°C~ +230°C
- Working Pressure : up to 50bar
APPLICABLE FLANGE
- KS / JIS 10K / 16K / 20K / 40K
- ASME B16.5, B16.47 Series A / B, CLASS 150 / 300
- AWWA C207 CLASS B / D / E
- BS EN 1092-1 PN6 / PN10 / PN16 / PN25 / PN40

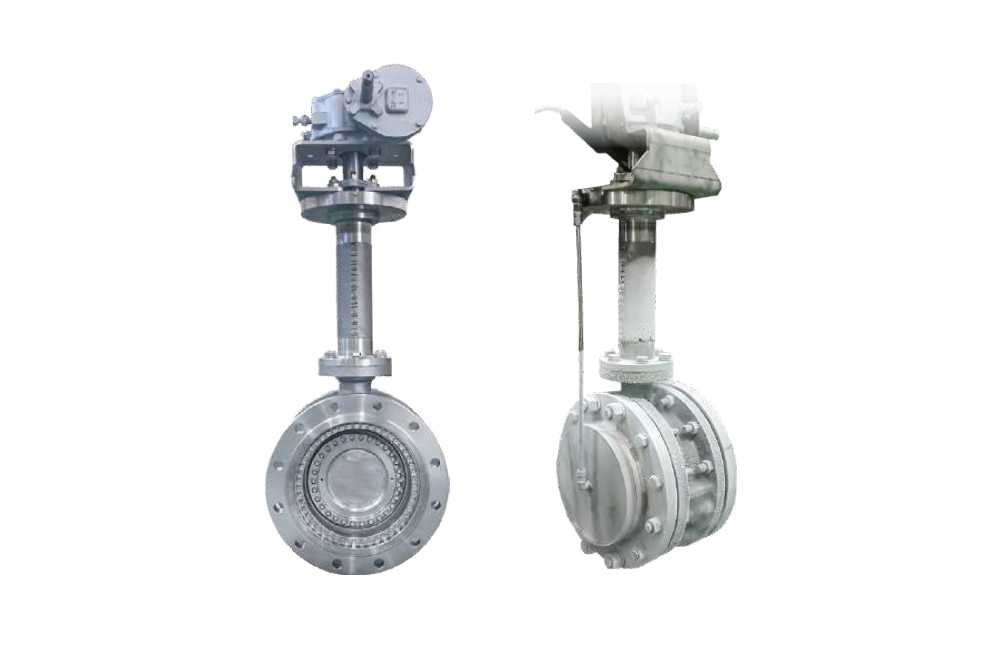

Cryogenic Butterfly Valves
STANDARD COMPLIANCE
- The face-to-face dimension shall be in accordance with ASME B16.10, JIS F 7310, and JIS F 7360 in general.
- The body is designed to API STD 609, ASME B16.34 JIS F 7310, 7360 in general.
PRODUCTION RANGE
- Valve Size : 100mm (4in) ~ 1,500mm (60in)
- Rating Temperature : -196°C ~ +650°C
- Working Pressure : up to 255 bar
APPLICABLE FLANGE
- ASME B16.5, B16.47 Series A / B, CLASS 150 / 300 / 600 / 900 / 1500
- KS / JIS 5K / 10K / 16K / 20K / 30K / 40K / 63K
- BS EN 1092-1 PN6 / PN10 / PN16 / PN25 / PN40 / PN63 / PN100
- AWWA C207 CLASS B / D / E
- ASME B16.25 (Buttweld)
TYPE 2
CHECK VALVES
체크 밸브
Cryogenic Dual Plate Check Valves
STANDARD COMPLIANCE
- The face-to-face dimension shall be in accordance with API 594.
PRODUCTION RANGE
- Valve Size : 50mm (2in) ~ 3,600mm (144in)
- Rating Temperature : -196°C~ +650°C
- Working Pressure : up to 425 bar
APPLICABLE FLANGE
- KS / JIS 5K / 10K / 16K / 20K / 30K / 40K / 63K
- BS EN 1092-1 PN6 / PN10 / PN16 / PN25 / PN40 / PN63 / PN100
- ASME B16.5, B16.47 Series A / B, CLASS 150 / 300 / 600 / 900 / 1500 / 2500
- AWWA C207 CLASS B / D / E

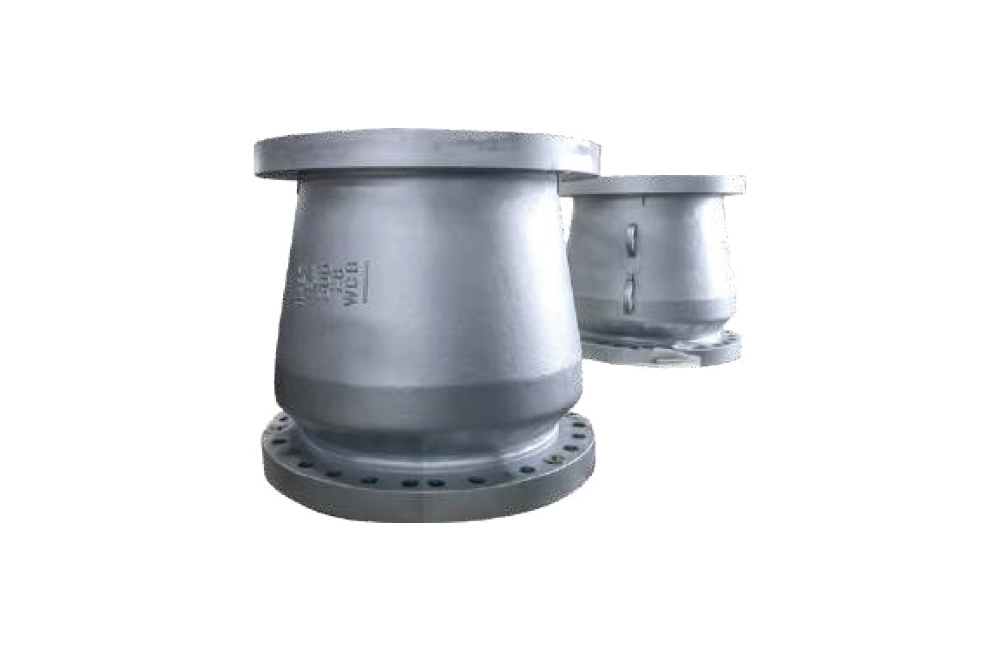

Cryogenic Nozzle Check Valves
STANDARD COMPLIANCE
- The face-to-face dimension shall be in accordance with API 6D, ASME B16.10.
PRODUCTION RANGE
- Valve Size : 50mm (2in) ~ 1,500mm (60in)
- Rating Temperature : -196°C~ +650°C
- Working Pressure : up to 425 bar
APPLICABLE FLANGE
- KS / JIS 5K / 10K / 16K / 20K / 30K / 40K / 63K
- BS EN 1092-1 PN6 / PN10 / PN16 / PN25 / PN40 / PN63 / PN100
- ASME B16.5, B16.47 Series A / B, CLASS 150 / 300 / 600 / 900 / 1500 / 2500
- AWWA C207 CLASS B / D / E
